COMPLEX REFRIGERATION
COMPLEX REFRIGERATION

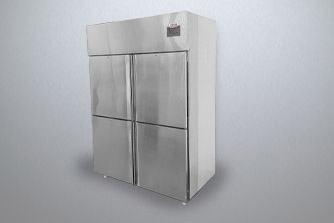

The Complex Refrigeration Upright Chiller is designed for efficiency and reliability, ideal for both commercial kitchens and retail spaces. This chiller ensures consistent cooling across its spacious interior, keeping perishables fresh and maintaining optimal storage conditions for a variety of products.
Built with durable materials and advanced cooling technology, the Upright Chiller from Complex Refrigeration delivers energy efficiency while providing easy access and adjustable shelving. This unit supports busy operations by combining dependable performance with low maintenance, catering to the demands of modern food storage needs.
Effective Time Management
Effective Time Management Using the blast chiller, it is easy to prepare large quantities of foods in advance for later. Chefs no longer repeat the cooking process every day and it also helps the efficient use of other cooking equipment.
Enhanced Quality
Enhanced Quality of Foods Blast chilling immediately preserves the moisture level of goods and prevents bacterial growth. Blast freezing prevents the food molecules from being damaged by macro-crystallization. The moisture, firmness and flavour can be maintained after defrosting.
Labour and Equipment
Labour and equipment can be used more efficiently while ingredients can be brought in larger quantities, providing economies of scale
Food
Food can be chilled safely with a longer shelf life. Portions can be made precisely and foods can then be regenerated as required.
Wider Menu
Wider Menu Using a blast chiller allows the chefs to prepare a greater selection of dishes, offering customers more choices while still maintaining the quality.
Natural Evaporation
The natural evaporation of moisture from cooked food would lead to weight loss. Using a blast chiller after the cooking process would stop evaporation and thus help to stop the loss of water and the foods weight.
Meal Turnover
If the meal turnover is limited by the number of meals you are able to cook and serve within your existing kitchen, using a blast chiller is a fast way to increase the business’ capacity without necessarily expanding the kitchen or employing extra kitchen staff.
- Cooling Options: Ventilated or static cooling to suit different environments.
- Condenser Technology: Air-cooled CU condenser for eliminating cooling water and enhancing longevity.
- Advanced Control System: Digital Subzero/Dixel controller with IP water protection rating to avoid breakdowns.
- Performance Assurance: Tested to operate efficiently under 40°C ambient conditions, ensuring reliable performance in harsh environments.
- Stability & Mobility: Heavy-duty castors and SS legs with adjustable nylon bullets for enhanced stability and easy mobility.
- Hygienic Design: SS exterior and SS 304 rounded interiors for hygiene, durability, and easy cleaning.
- Energy Efficiency: Self-closing door to minimize heat ingress and reduce energy consumption.
- Durable Seals: Magnetic fixed/removable gasket for tight seals and reduced heat ingress.
- Thermal Insulation: High-density PUF insulation for maximum thermal efficiency.
- Eco-Friendly Refrigerant: Uses refrigerants with zero ODP and low GWP, with an option for zero GWP refrigerants.
- Ergonomic Design: Full-length door handle with a non-slip surface, free of potential dirt traps.
- Safety Features: Adjustable and anti-tilt tray slides to prevent tripping and facilitate easy removal and food placement.
- Convenient Access: 115°C and 180°C door dwell times, ideal for loading large trays with limited walk-away.
- Energy Conservation: Fan cut-out door switch in ventilated freezers to stop hot air and conserve energy.
- Condensation Prevention: Low-voltage mullion heater in freezer to prevent condensation.
- Enhanced Security: Barred lock doors with keys for added security.
- Uniform Cooling: Enhanced airflow design for uniform temperature distribution and no warm spots.
- Serviceability: Front openable service panel for ease of maintenance and serviceability.
- Splash of 100/150mm (except prep counters)
- Overhead shelf 18’’x12’’ with heater lamps / RR heater / infrared heaters
- Std sink of 13’’x15’’x8’’ above unit with barrel nipple and hand operating valve
- Tool drawer above unit
- Depth of 600/750mm
- Sunk-in Bain Marie available in prep counters and with bottom door freezer option.
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (LXWXH) (MM) | DIMENSION (LXWXH) (INCH) | COOLING | NO OF BOTTLES (9"/12" NOS) | LIGHT | POWER (WATTS) |
|---|---|---|---|---|---|---|---|---|
| 2 DOOR BAR COOLER | BBC30 | 150 | 915X560X900 | 36X22X36 | VENTILATED | 9"-100 | YES | 300 |
| 3 DOOR BAR COOLER | BBC45 | 250 | 1370X560X900 | 54X22X36 | VENTILATED | 9"-175 | YES | 375 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||

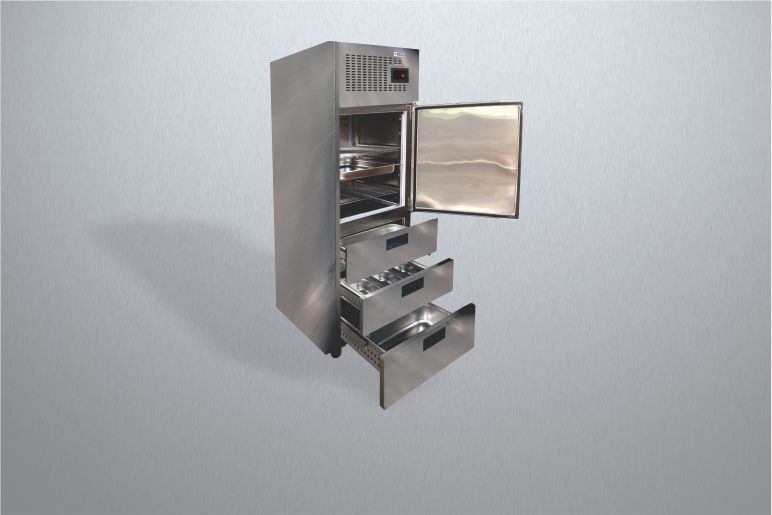

| GN 1DOOR/3DRAWER | 1/3VGBB | 400 | 525 X 840 X 2000 | 21 X 33 X 79 | VENTILATED | YES | 2 | 500 |
| GN 1DOOR/3DRAWER | 1/3VGBS | 650 | 725 X 840 X 2000 | 28.5 X 33 X 79 | VENTILATED | 2:1 | 2 | 400 |
- IN 1/3VGBB EACH DRAWER COMPATIBLE WITH 2:1X150MM GN & IN 1/3VGBS EACH DRAWER COMPATIBLE WITH 1:1X150MM GN
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| GN 2 DOOR UPRIGHT | 2VGB | 700 | 725 X 840 X 2000 | 28.5 X 33 X 79 | VENTILATED | 2:1 | 4 | 500 |
| GN 4 DOOR UPRIGHT | 4VGB | 1400 | 1390 X 840 X 2000 | 55 X 33 X 79 | VENTILATED | 2:1 | 8 | 1000 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| GN 2 DOOR COMBO | 2VGC | 650 | 725 X 840 X 2000 | 28.5 X 33 X 79 | VENTILATED | 2 | 4 | 850 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| GN 2 DOOR UC | 2TGBP | 300 | 1350 X 700 X 850 | 53 X 28 X 34 | VENTILATED | YES | 4 | 300 |
| GN 3 DOOR UC | 3TGBP | 450 | 1800 X 700 X 850 | 71 X 28 X 34 | VENTILATED | YES | 6 | 500 |
- OPTION OF 2/3 DRAWERS AVAILABLE INSTEAD OF DOORS
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| GN 3 DOOR CHILLER | 3TGBS | 450 | 1350 X 700 X 850 | 53 X 28 X 34 | VENTILATED | YES | 6 | 300 |
| GN 4 DOOR CHILLER | 4TGBS | 600 | 1800 X 700 X 850 | 71 X 28 X 34 | VENTILATED | YES | 8 | 500 |
| GN 3 DOOR FREEZER | 3TGFS | 450 | 1350 X 700 X 850 | 53 X 28 X 34 | STATIC | YES | 6 | 450 |
| GN 4 DOOR FREEZER | 4TGFS | 600 | 1800 X 700 X 850 | 71 X 28 X 34 | STATIC | YES | 8 | 750 |
- IN SPLIT UNIT CHILLER , DRAWER OPTION AVAILABLE , LENGTH OF THE SPLIT UNIT SHALL BE WITHIN STIPULATED DISTANCE
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| 6FT CANNOLI CART | 6CC | 1800 X 700 X 1500 | 71 X 28 X 34 | STATIC | YES | 2 | 700 | |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| 1 DOOR CHILLER | 1WMC | 125 | 965 X 525 X 610 | 38 X 21 X 24 | VENTILATED/STATIC | YES | 2 | 300 |
| 2 DOOR CHILLER | 2WMC | 250 | 1220 X 525 X 610 | 66 X 21 X 24 | VENTILATED/STATIC | YES | 2 | 500 |
| 1 DOOR FREEZER | 1WMC | 125 | 965 X 525 X 610 | 38 X 21 X 24 | STATIC | YES | 2 | 350 |
| 2 DOOR FREEZER | 2WMC | 250 | 1220 X 525 X 610 | 66 X 21 X 24 | STATIC | YES | 2 | 550 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | INPUT P | |
|---|---|---|---|---|---|---|---|
| MM | INCH | ||||||
| DOUBLE DOOR | SBC | 1000 | 1225 X 760 X 2000 | 48 X 30 X 79 | VENTILATED/STATIC | PINT-500 | 750 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | INPUT P | |
|---|---|---|---|---|---|---|---|
| MM | INCH | ||||||
| SINGLE DOOR | HUF | 400 | 630 X 610 X 2000 | 25 X 24 X 79 | VENTILATED | -18 TO | 850 |
- IN SPLIT UNIT CHILLER , DRAWER OPTION AVAILABLE , LENGTH OF THE SPLIT UNIT SHALL BE WITHIN STIPULATED DISTANCE
- OPTION OF 1 FULL SINGLE DOOR AVAILABLE INSTEAD OF 2 HALF DOORS
- Option for ventilated or static cooling based on usage environment.
- Air cooled CU condenser ensuring elimination of cooling water & longevity
- Digital subzero/dixel controller, IP water protect rating avoids breakdowns
- Tested at 40*c ambient conditions to operate efficiently in harsh conditions
- Heavy duty castors / SS legs with adj nylon bullets for stability / mobility
- SS exterior & SS 304 rounded interiors provide hygiene, durable & easy to clean.
- Self closing door to avoid heat ingress and reduce energy consumption
- Magnetic fixed/removal gasket for durability & tight seal, reduce heat ingress
- Precision high density PUF insulation provides max thermal property
- Eco friendly refrigerant with 0 ODP and low GWP (option of 0 GWP available)
- Full length door handle with non slip & no potential dirt traps
- Adj & anti tilt tray slides to stop tripping, ease to remove & food placement
- 1150c & 1800c door dwell, beneficial for loading large trays, limited walk away
- Fan cut out door switch in ventilated freezer stops hot air & conserving energy
- Low voltage mullion heater in freezer to avoid condensation
- Barred lock doors with keys for added security
- Enhanced air flow design ensuring uniformity & no potential warm spots
- Front open able service panel for ease of serviceability
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||

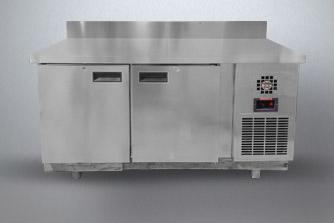

| GN2 DOOR UC | 2TGB | 300 | 1370 X 700 X 850 | 54 X 28 X 34 | STATIC/VENTILATED | 1:1 | 4 | 375 |
| GN3 DOOR UC | 3TGB | 450 | 1830 X 700 X 850 | 72 X 28 X 34 | STATIC/VENTILATED | 1:1 | 6 | 400 |
| GN2 DOOR UC GLASS DOOR | 2TGBG | 300 | 1370 X 700 X 850 | 54 X 28 X 34 | STATIC/VENTILATED | 1:1 | 4 | 375 |
| GN3 DOOR UC GLASS DOOR | 3TGBG | 450 | 1830 X 700 X 850 | 72 X 28 X 34 | STATIC/VENTILATED | 1:1 | 6 | 400 |
| GN 6 DRAWER UC | 6DTGB | 300 | 1370 X 700 X 850 | 54 X 28 X 34 | VENTILATED | 1:1 | DR-6 | 400 |
| GN 9 DRAWER UC | 9DTGB | 450 | 1830 X 700 X 850 | 72 X 28 X 34 | VENTILATED | 1:1 | DR-9 | 550 |
| GN UNDERBURNER 4 DRAWER | 4DUBC | 250 | 1370 X 700 X 600 | 54 X 28 X 24 | VENTILATED | 1:1 | DR-4 | 400 |
| GN UNDERBURNER 6 DRAWER | 6DUBC | 350 | 1830 X 700 X 600 | 72 X 28 X 24 | VENTILATED | 1:1 | DR-6 | 550 |
| PREP COUNTER (2 DOOR OR 6 DRAWER) 1/6X100-8 NOS | 2TGBM | 300 | 1370 X 700 X 850 + 150 | 54 X 28 X 34 + 6 | VENTILATED/STATIC, BM - STATIC | 1/6-8 | 4 | 400 |
| PREP COUNTER (3 DOOR OR 9 DRAWER) 1/6X100-10 NOS | 3TGBM | 450 | 1830 X 700 X 850 + 150 | 72 X 28 X 34 + 6 | VENTILATED/STATIC, BM - STATIC | 1/6-10 | 6 | 550 |
| DESCRIPTION | MODEL | CAP (LTRS) | DIMENSION (L X W X H) | COOLING | GN | RACK NO | INPUT P | |
|---|---|---|---|---|---|---|---|---|
| MM | INCH | |||||||
| 2 DOOR UC FREEZER | 2TGF | 300 | 1370 X 700 X 850 | 54 X 28 X 34 | STATIC | 1:1 | 4 | 500 |
| 3 DOOR UC FREEZER | 3TGF | 450 | 1830 X 700 X 850 | 72 X 28 X 34 | STATIC | 1:1 | 6 | 850 |
- Splash of 100/150mm (except prep counters)
- Overhead shelf 18’’x12’’ with heater lamps / RR heater / infrared heaters
- Std sink of 13’’x15’’x8’’ above unit with barrel nipple and hand operating valve
- Tool drawer above unit
- Depth of 600/750mm
- Sunk in bain marie avialble in prep counters & with bottom door freezer option
- OPTION OF VENTILATED / STATIC COOLING DEPENDING UPON THE USAGE ENVIRONMENT
- AIR COOLED CU CONDENSER ENSURING ELIMINATION OF COOLING WATER & LONGEVITY
- DIGITAL SUBZERO/DIXEL CONTROLLER,IP WATER PROTECT RATING AVOIDS BREAKDOWNS
- TESTED AT 40*C AMBIENT CONDITIONS TO OPERATE EFFECIENTLY IN HARSH CONDITIONS
- HEAVY DUTY CASTORS / SS LEGS WITH ADJ NYLON BULLETS FOR STABILITY / MOBILITY
- SS EXTERIOR & SS 304 ROUNDED INTERIORS PROVIDE HYGIENE,DURABLE&EASY TO CLEAN
- SELF CLOSING DOOR TO AVOID HEAT INGRESS AND REDUCE ENERGY CONSUMPTION
- MAGNETIC FIXED/REMOVAL GASKET FOR DURABILITY&TIGHT SEAL, REDUCE HEAT INGRESS
- PRECISION HIGH DENSITY PUF INSULATION PROVIDES MAX THERMAL PROPERTY
- ECO FRIENDLY REFRIGERANT WITH 0 ODP AND LOW GWP(OPTION OF 0 GWP AVAILABLE)
- ADJ & ANTI TILT TRAY SLIDES TO STOP TRIPPING,EASE TO REMOVE & FOOD PLACEMENT
- BARRED LOCK DOORS WITH KEYS FOR ADDED SECURITY
- ENHANCED AIR FLOW DESIGN ENSURING UNIFORMITY & NO POTENTIAL WARM SPOTS
Size and Capacity
Bar fridges come in various sizes and capacities. This makes them a versatile option for those with limited space who still want to keep their drinks and snacks cold.
Temperature Control
Most bar fridges come with adjustable thermostats, allowing you to control the temperature inside the refrigerator. This is important because different drinks and snacks require different temperatures to stay fresh.
Shelves and Compartments
Bar fridges come with a range of shelves and compartments that allow you to organize your drinks and snacks efficiently. Some models come with adjustable shelves, allowing you to customize the interior to suit your needs.
Energy Efficiency
Bar fridges are generally more energy-efficient than larger refrigerators. This is because they have a smaller capacity, which means they use less energy to cool the contents.
Portability
Bar fridges are designed to be lightweight and portable, making them easy to move around as needed. This is particularly useful for individuals who want to use their fridges in different locations, such as in their office during the day and in their bedroom at night.
Space-Saving Design
Bar fridges are designed to be compact, making them a space-saving option for those who have limited space in their home or office. They can be placed on a countertop, desk, or floor.
Convenience
With a bar fridge, you can keep your drinks and snacks cold and within easy reach. This is particularly useful if you have guests and want to avoid running back and forth to the kitchen to get drinks and snacks.
Energy Efficiency
Bar fridges are generally more energy-efficient than larger refrigerators. This is because they have a smaller capacity, which means they use less energy to cool the contents. This can aid you in saving money on your energy bills over time.
Cost Effective
Bar Fridges are generally less expensive than larger refrigerators, making them an affordable option for those on a budget.
